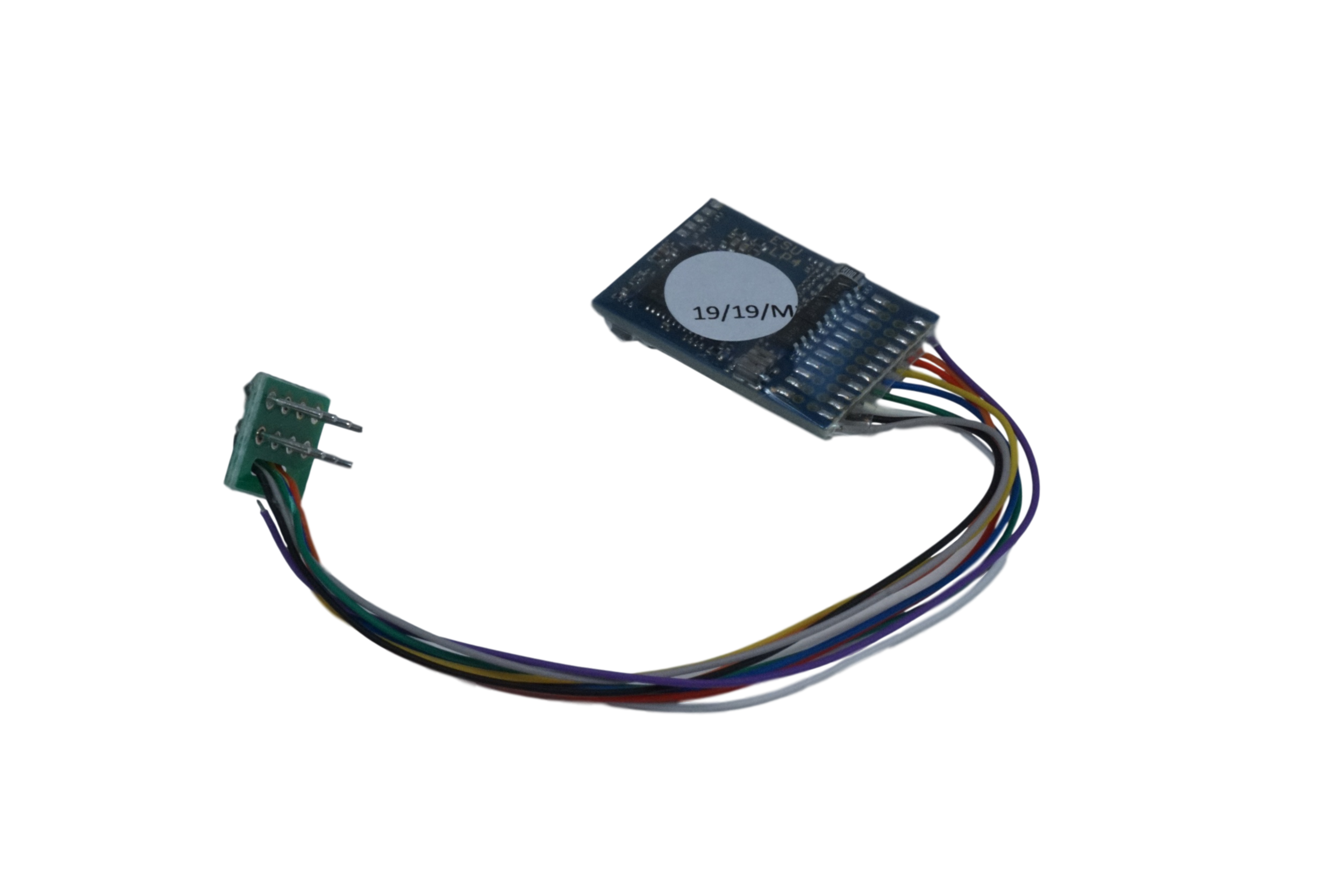

The LokPilot 5 8 Pin is the perfect decoder for “generic” locomotive installs. The NMRA standard 8 pin connector allows for easy installation in a wide variety of locomotives. If a “hard-wire” installation is desired, simply cut off the connector and solder the leads. With 4 function outputs and 1.1 amps of continuous motor output, the LokPilot 5 8 Pin is a great overall decoder for many HO applications.

Dimensions: 22 x 16 x 6mm

The LokPilot V4 21 pin is ideal for modern HO locomotives with a 21 pin MTC connector. With 8 function outputs and 2 logical outputs, this decoder is optimal for modern locomotives with demanding lighting requirements. Class leading motor control provides extremely smooth and quiet operation, and 1.1 amps of continuous motor output. A small form factor allows easy installation into any application with the 21 pin MTC interface.

Dimensions: 22 x 16 x 6mm

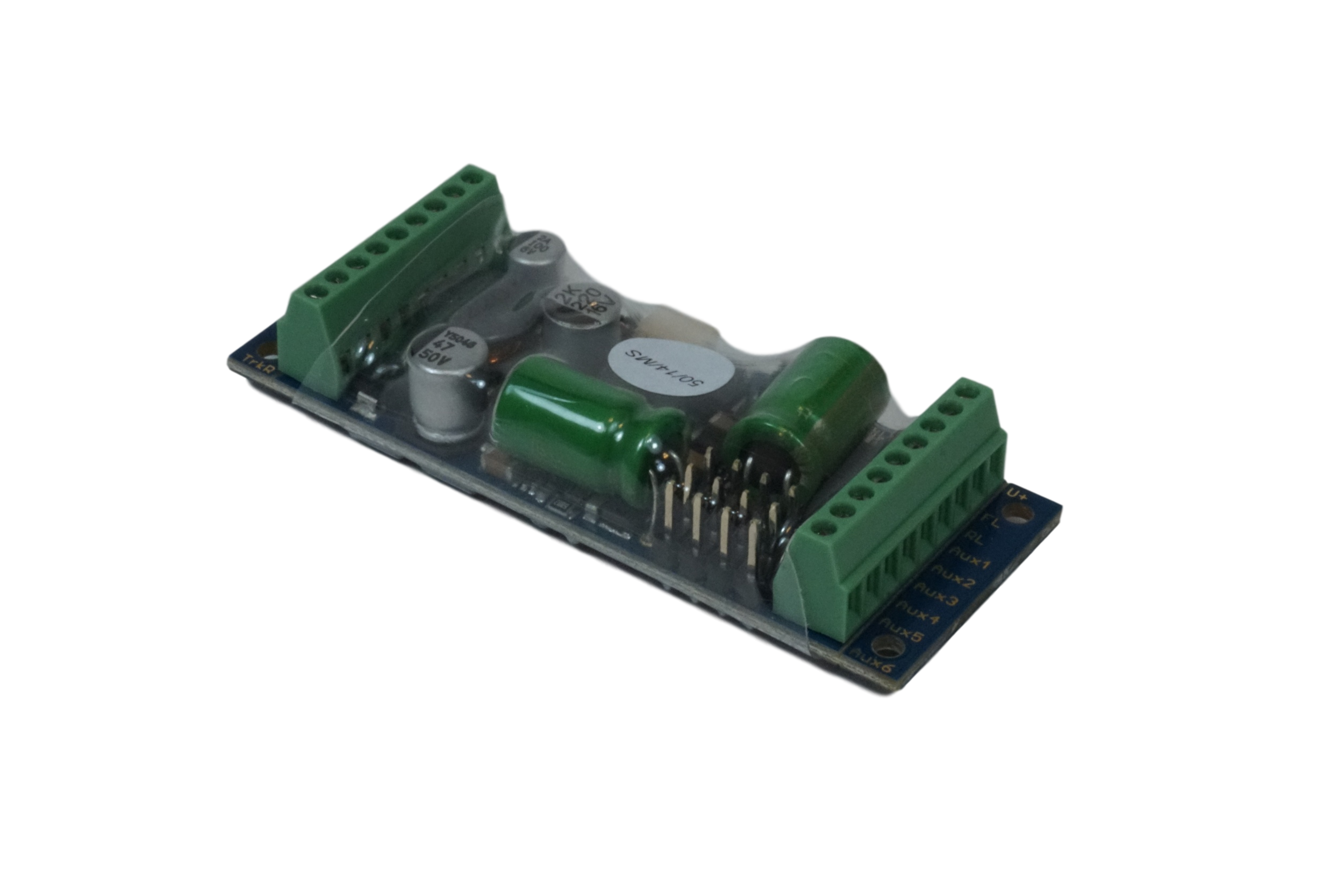

The LokPilot XL V4 is the perfect decoder for O and G scale modelers who don’t need sound output. With a built-in Power Pack, 4 amp motor capability, and factory heat shrink around the board, the LokPilot XL is a great fit for large scale locomotives with demanding requirements, such as being outdoors. 8 lighting outputs and 4 RC servo outputs allow you to operate all the accessories you desire on your engine.

Dimensions: 55 x 25 x 10 mm.
